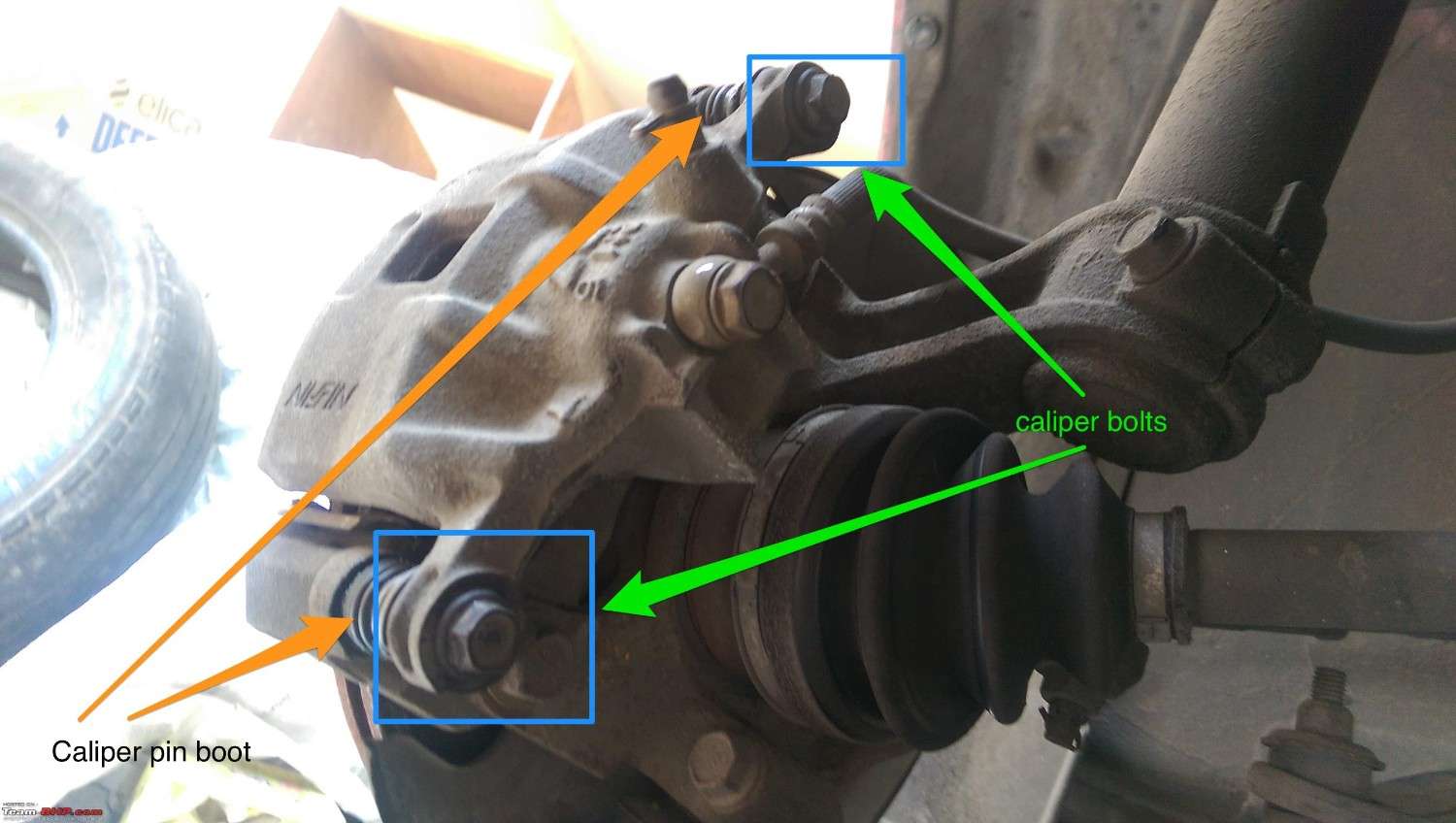

Caliper Pin Replacement

What Happens When Caliper Pins Seize?

A seized caliper pin is not just an inconvenience — it is a genuine safety concern. Here is what happens to your braking system when caliper pins stop working correctly:

• Uneven Brake Pad Wear When a caliper cannot slide freely, one brake pad ends up doing most of the work while the other barely contacts the disc. You may find one pad worn down to nothing while its partner still has plenty of material left. This is one of the most common signs of a caliper pin problem.
• Brake Drag A seized caliper pin can prevent the caliper from fully releasing after you lift your foot off the brake pedal. The pad remains in partial contact with the disc — a condition called brake drag. You may notice the vehicle feels sluggish, the wheel area gets unusually hot after driving, or you smell a burning odour coming from one of the front wheels.
• Vehicle Pulling to One Side If one caliper is dragging while the other releases cleanly, your vehicle will pull toward the dragging side under braking. This unpredictable behaviour is dangerous, particularly at higher speeds or during emergency stops.
• Overheated Brake Components Constant friction from brake drag generates enormous heat. This heat warps brake discs, glazes brake pads, degrades brake fluid, and can even damage the caliper itself. What starts as a simple caliper pin issue can quickly escalate into a much more expensive full brake overhaul.
• Reduced Braking Efficiency A braking system that cannot apply and release evenly across all four wheels is fundamentally compromised. Stopping distances increase, and in emergency situations, the difference between a controlled stop and a collision can come down to a few metres.

Signs Your Caliper Pins Need Replacing

Recognising the warning signs of failing caliper pins early allows you to address the issue before it causes secondary damage to more expensive components. Watch for these symptoms:

• Uneven Brake Pad Wear If your brake pads are wearing significantly faster on one side than the other — or if the inner pad is worn while the outer pad looks nearly new — caliper pin problems are a likely cause.
• Burning Smell from One Wheel A persistent burning smell, particularly concentrated around one front wheel after normal driving, is a classic sign of brake drag caused by a seized caliper pin.
• Vehicle Pulling Under Braking Any consistent pulling to the left or right when you apply the brakes deserves immediate investigation. While it can have other causes, a seized or sticky caliper pin is among the most common.
• Wheel Feeling Hot After Driving Carefully place your hand near — not on — the wheel after a short drive. If one wheel area feels significantly hotter than the other, the brake on that side may be dragging due to a stuck caliper pin.
• Spongy or Uneven Brake Pedal Feel In some cases, compromised caliper movement can affect the feel of the brake pedal, making it feel inconsistent or less responsive than usual.
• Squealing or Grinding Noises on One Side If brake noise seems to come predominantly from one side of the vehicle, uneven pad contact caused by a faulty caliper pin may be the root cause.

Caliper Pin Replacement vs. Cleaning and Re-Greasing

Not every caliper pin problem requires full replacement. At Marwat Garage Ajman, our approach is always to inspect first and recommend only what is genuinely necessary.

• Cleaning and Re-Greasing If the caliper pins are still in good physical condition — no significant corrosion, pitting, or deformation — and the rubber boots are intact, a thorough clean and re-grease with the correct high-temperature brake caliper grease can restore smooth sliding action. This is the preferred outcome when caught early, as it is faster and more cost-effective.
• Full Caliper Pin Replacement When the pins are corroded, pitted, bent, or the rubber boots are cracked and no longer sealing correctly, cleaning alone will not provide a lasting fix. In these cases, caliper pin replacement is necessary — new pins, new boots, and fresh grease are installed to restore the system to full working order.

Using the wrong type of grease is a common mistake made at less experienced workshops. Standard petroleum-based greases can swell and damage rubber boots, while insufficient grease leads to rapid re-seizure. Our technicians use only the correct specification, high-temperature caliper slide pin grease — the type specifically designed for this application.

The Caliper Pin Replacement Process at Marwat Garage Ajman

When you bring your vehicle to us for caliper pin replacement, here is what the service involves:

• Vehicle Lift and Wheel Removal — The vehicle is safely raised and the relevant wheel removed to access the brake assembly.
• Brake System Inspection — Before touching the caliper pins, we inspect the full brake assembly — pads, discs, caliper, brake lines, and fluid condition.
• Caliper Removal — The brake caliper is carefully removed from the mounting bracket without disconnecting the brake hose.
• Pin Extraction and Assessment — The caliper pins are removed and inspected for corrosion, pitting, scoring, or deformation. Boot condition is checked carefully.
• Decision Point — We determine whether cleaning and re-greasing is sufficient or whether full caliper pin replacement is required, and communicate this clearly to you before proceeding.
• Cleaning or Replacement — Pin housings and mounting brackets are thoroughly cleaned. New pins and boots are fitted if required, or existing pins are cleaned and re-greased with correct specification grease.
• Caliper Reassembly — The caliper is reinstalled correctly, with all bolts torqued to manufacturer specification.
• Brake Pad and Disc Check — If uneven pad wear has been caused by the caliper pin issue, we flag this and recommend pad or disc replacement as needed.
• Test and Verification — The brakes are tested for smooth, even application and full release before the vehicle is returned.

How Often Should Caliper Pins Be Serviced?

Caliper pins should be inspected and re-greased as part of every brake service — typically every 20,000 to 30,000 kilometres, or whenever brake pads are replaced. In the UAE’s harsh climate, where heat and occasional humidity accelerate grease degradation and corrosion, more frequent attention is beneficial.

At Marwat Garage Ajman, caliper pin inspection is a standard part of our brake service process. We never replace brake pads without checking the condition of the caliper pins — because fitting new pads onto a caliper with seized pins simply wastes the new components and leaves the underlying problem unresolved.

If your vehicle has not had a brake service in over two years, or if you have experienced any of the warning signs described in this guide, it is worth having your caliper pins inspected as part of a full brake check.

Why Caliper Pin Maintenance Matters in Ajman

The UAE’s driving environment places extra demands on caliper pins in several ways.

The extreme summer heat accelerates the breakdown of lubricating grease inside the caliper pin boots. Vehicles that spend long periods in direct sunlight — common in Ajman’s outdoor parking areas — experience higher ambient temperatures that shorten the effective lifespan of rubber boots and greases.

Ajman’s coastal proximity means humidity levels can fluctuate, creating conditions where corrosion develops faster on exposed metal components. Sand and dust from the surrounding environment can also infiltrate compromised rubber boots, acting as an abrasive and accelerating pin wear.

Regular brake servicing that specifically includes caliper pin inspection is not optional in this climate — it is essential preventive maintenance.
